Χαρακτηριστικά

Προδιαγραφές

Condition: New

Range of Spindle Speed(r.p.m): 0 - 24000 rpm

Positioning Accuracy (mm): 0.02 mm

Number of Axes: 3

No. of Spindles: Single

Working Table Size(mm): 3100*2050mm

Machine Type: CNC Router

Travel (X Axis)(mm): 3100 mm

Travel (Y Axis)(mm): 2100 mm

Repeatability (X/Y/Z) (mm): 0.02 mm

CNC or Not: CNC

Voltage: AC 380/3P/50HZ

Dimension(L*W*H): 3.7*2.3*1.7M

Weight (KG): 2500

Control System Brand: Syntec

Warranty: 2 years

Key Selling Points: Automatic

Applicable Industries: Construction worksÂ , Advertising Company

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 2 years

Core Components: Motor

Working size: 3080*2050*180mm

Transmission: X Y axis rack and pinion transmission, Z axis ball screw transmission

Spindle power: 3.0/4.5/6kw

Motor and driver: Stepper/ Yaskawa

Controller: Hand-Held Controller

Spindle speed: 18000r/min

Table structure: T-slot/ Vacuum table

Rail guide: Japan THK rail guide

Working speed: 15m/min

Βασικές πληροφορίες

Πληρωμής & Αποστολής Όροι

Packaging Details: The cnc center is to be packed with plastic sheet for cleaning and damp proofing. Fasten the cnc machine into the wood case for safety and against clashing. Transport the wood case into the container.

Supply Ability: 200 Set/Sets per Month EXCITECH 1325 3D CNC Router, door cnc wood cutting machine

Περιγραφή προϊόντων

Product Description

The machine with carousel tool magazine, suitable for composite wood products processing, wide function such as boring, drilling,cutting, side milling, and edge cutting,etc. It is a standard processing center with high cost performance. The table top adopt T-slot and vacuum table combination, can strongly adsorb different areas of materials, also can fix different shpes of materials, flexible and convenient. At the same time, the machine is also equipped with vertical drilling bank, which can meet more need of the customers.

Product Application

Company Profile

MAXICAM-China, a professional machinery manufacturing company, was established with the most discriminating customers in mind.
Maxicam range of CNC Router is well established across many sectors of the world manufacturing industry including cabinet making,furniture production, woodworking, metal working, sign making, solid surface machining, tooling and plastic fabrication, architectural model makers and engineering shops. Our primary products include, Woodworking & Plastic CNC Routers, Woodworking
Machining Centers, CNC Engravers, Sign Making CNC Routers, Mould Making CNC machines and 5 axis Machining Centers. We offer high quality CNC machines with a huge range of options to suit any budget or brief from small desktop machines up to large 5 axis machines. This allows our customers to machine a vast range of materials from cards, foams, resin modeling boards, wood and even non-ferrous metals both quickly and accurately. Our extensive range of machines are available in many configurations to suit any application and any budget.
Maxicam CNC pecializes in the development and manufacture of CNC routers, laser cutters, CNC wood lathes, and other CNC machines. For over 10 years development, excellent quality and competitive prices bring us stable customers from all over the world.
The Maxicam range of CNC Routers ate known for our high precision, outstanding reliability, easy of operation and simple
mainteance. Maxicam, CE certified products are built to the highest standards with parts sourced from the leading manufacturers in machine tool automation. Maxicam are without doubt the best choice in large or small format CNC machine tools on the market.

Certifications

Exhibition

Customer Photos

Packing & Delivery

FAQ

Q1 :How about warranty?
A1:2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changedfree of charge(some parts will be maintained) when if any problem during the warranty period

Q2: I don't know which one is suitable for me ?
A2:Please tell me
1).Yourmaterials.
2).Max size of your material.
3).Max cut thickness.
4).Popular cut thickness.

Q3:Payment terms?
A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.

Q4:Do you have CE document and other documents for customs clearance?
A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packinglist/Commercial Invoice/Sales contract for customs clearance.

Q5:I don't know how to use after i receive Or i have problem during use,how to do?
A5: 1).We have detailed user manual with pictures and CD,you can learn step by step.And our user manualupdate every month for your easy learning if there is any update on machine.
2).If have any problem during use,you need our technician to judgeThe problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problemsfinished.We can also provide Doorservice if you need.

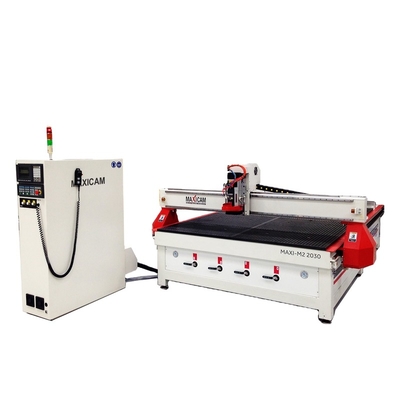

Construction worksÂ MAXI-M2 2030C CNC Router For Furniture Making With 8 Carousel Tool Magazine
