Αρχική Σελίδα /Προϊόντα/Τραπεζικό πριονιστήριο CNC/KIT-6132TD Hotels 45 Degree Wood Based Panel Saw Cut Sliding Table Woodworking Machinery

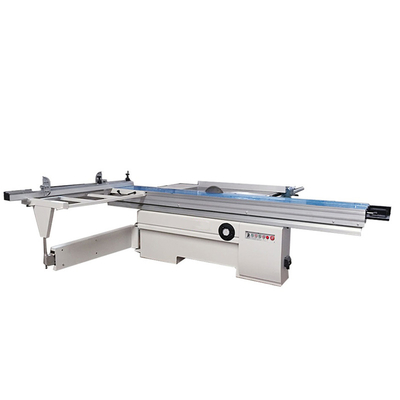

KIT-6132TD Hotels 45 Degree Wood Based Panel Saw Cut Sliding Table Woodworking Machinery

1 Set

MOQ

$2,300.00(1 - 2 Sets) $1,799.00(>=3 Sets)

τιμή

KIT-6132TD Hotels 45 Degree Wood Based Panel Saw Cut Sliding Table Woodworking Machinery

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Condition: New

Type: sliding table saw

Voltage: 220v/380v as your requirement

Dimension(L*W*H): 3200*3150mm*900mm

Power (kW): 5.5kw

Weight (KG): 800 kg

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Construction worksÂ , Furniture factory

Warranty: 1 Year

Key Selling Points: Famous brand PLC

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Bearing, Motor, Pump, Gear, Gearbox, Pressure vessel, Engine

Usage: MDF Production

Name: Sliding Table Panel Saw

Size: 3200*3150mm*900mm

Gross cut capacity: 3200mm

Width of saw blade and rip fence: 1250mm

Saw blade diameter: 300mm

Saw blade's lifting and down: Manual blade up and down

Speed of main saw spindle: 4500/6000rpm

Main spindle diameter: 30mm

Tilting saw blade: 45tilting

Main motor: 5.5kw

Βασικές πληροφορίες

Πληρωμής & Αποστολής Όροι

Packaging Details: Stretch film with wooden case or as your request each sliding table panel saw

Supply Ability: 100 Set/Sets per Month

Περιγραφή προϊόντων

Products Description

Features:

1. With oxidation treatment, movable table surface is beautiful and hard wearing.

2. Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.

3. Motor power and voltage can be customized.

Advantages:

1. We make the machine aggravating in order to improve equipment stability and is much heavier than ordinary ones and running more stable.
2. The saw axis is equipped after two dynamic balance so it is much more life-saving and high precision.
3. Movable table guide track is plating chromium steel bars structure, exact and durable.

Model	KIT-6132TD	KIT-45	KIT-400L	KIT-400K
Saw blade’s lifting and down	Manual blade up and down	Electric blade up and down	Electric blade up and down	Electric blade up and down
Angle tilting	Manual blade tilting	Manual blade tilting(Digital tilt angle display)	Manual blade tilting(Digital tilt angle display)	Electric blade tilting(Digital tilt angle display)
Dimension of sliding table	3200*360mm	3200*430mm	3200*390mm	3200*388mm
Gross cut capacity	3200mm	3200mm	3200mm	3200mm
Max. Sliding Width	1250mm	1250mm	1270mm	1270mm
Saw blade diameter	300mm	350mm	350 (400)mm	350 (400)mm
Speed of main saw spindle	4500/6000rpm	4200/5600rpm	5000rpm	5000rpm
Main spindle diameter	30mm	30mm	30mm	30mm
Tilting saw blade	0~45°	0~45°	0~45°	0~45°
Main motor	5.5kw	5.5kw	5.5kw	5.5kw
Net weight	800kg	800kg	930kg	950kg

Details Images

01.

Angle Control Handle

(Manual titling)

02.

Height Control Handle

(Manual up and down)

To raise or lower the saw blades,it just needs to adjust the Up/Down hand wheel on the right side of the machine body.

03.

Dust Collector Opening

It to connect with the dust collector.

04.

Double Saw Blade

Small saw blade marking line.
Large saw blade cutting board.

This structure is easy to cut all kinds of board.

05.

Positioning Baffle

Stable and non-shifting, to ensure the accuracy of cutting.

06.

Large guiding rule

No shift during cutting.
With magnifier, more accurate.

07.

Motor

With domestic high quality motor, low voltage, long lifetime.

08.

Feeding Frame

Aluminium feeding frame can bear more heavy wooden.Do not easy to hurt.

Precision rail

chrome plated round rod construction.

Pressure Utensil

The pressure utensil is used for pressing workpiece on the sliding table.

Mounting Safety Cover (ordinary)

Push knife

When the wood less than 120mm to be cut, the push knife shallbe used to prevent hand from approaching to the saw blade.

Product packaging

PACKAGING AND DELIVERY

We will ensure that your machine is clean before packaging.
We will add elastic film to the whole machine and spare parts to provide exquisite protection.
We will produce export standard sturdy wooden box packaging according to your requirements.

Customer Feedback

Customers from different countries give us good comments. The pictures of our communication for you reference.

Recommend Products

Company Profile

Foshan HOLYISO Machinery CO.,Ltd. is committed to providing customers all over the world with high-quality,stable and durable woodworking machinery. It is a professional manufacturer of Panel saw, Edge banding machine,CNC cutting machines and CNC drilling machine.

We have more than 30 professional R&D personnel, the total production area of the factory is more than 27,000 square meters, and more than 30 various high-precision advanced processing equipment, ensuring the perfect performance of the machine. The company uses advanced technology from Germany and Italy to develop automated woodworking CNC equipment that meets the needs of the
furniture and wood products industry.

FAQ

1. Do you provide installation services?
Our machine is almost assembled before it is loaded into the container. It is very easy for installation in your workshop. We provide free video guidance and English manuals. Engineers can be sent to service in site if the buyer request.

2. Where can we get replacement parts?
Most spare parts are in stock. The spare parts will be sent directly from our warehouse to the buyer at the original price.
3. How soon can we get replacement parts?
Common spare parts can be delivered by express delivery within one week. Some parts can be purchased locally.
4. What technical support do you provide?
(1). Provide 24/7 technical support via phone, email, WhatsApp/Skype or remote control.
(2). English version manual and operation video.
(3). Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines have been sold to more than 70 countries around the world, such as Russia, Uzbekistan, the United States, Canada, Argentina, Colombia, Mexico, Peru, Chile, Ecuador, Romania, Vietnam, the Philippines, Australia, Malaysia, Thailand, Singapore, South Korea, Indonesia etc.
6. Can you customized the machine?
Our machines can be customized according to the buyer's requirements.
7. What other machines do you provide?
We provide buyers with one-stop production line services for woodworking machinery. Other types of woodworking machinery can also be provided, such as double-side planer, four-side planer, finger jointer machine, sanding machine, horizontal band saw, etc.
8. Can you set the system to our language?
Our system supports common languages such as Chinese, English, Russian, Spanish, French, German, Vietnamese, etc.
