Condition:
New
Spindle Taper:
BT40
No. of Spindles:
Single
Type:
VERTICAL
Dimension(L*W*H):
3400x3100x3000mm
Weight (T):
8.2 T
Table Size (mm):
1200x700
CNC Control System:
GSK, FANUC, KND, Siemens
Number of Axes:
3, 4, 5
Table Travel (X) (mm):
1200
Table Travel (Y) (mm):
700
Table Travel (Z) (mm):
700
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
0.005
Range of Spindle Speed(r.p.m):
10 - 10000 r.p.m
Spindle Motor Power(kW):
11
Max. Table Load(kg):
1000 kg
Feed Speed(mm/min):
10 - 10000 mm/min
Rapid Feed Speed(m/min):
36/36/24
Min. Time of Tool Change(s):
3
Tool Magazine Capacity:
16, 24, 32
Key Selling Points:
Long Service Life
Warranty:
2 years
Voltage:
220V/380V
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Showroom Location:
Canada, Turkey, Italy, Viet Nam, Philippines, Brazil, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, South Korea, Sri Lanka, Romania, South Africa, Malaysia
Marketing Type:
Hot Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
2 years
Core Components:
Motor

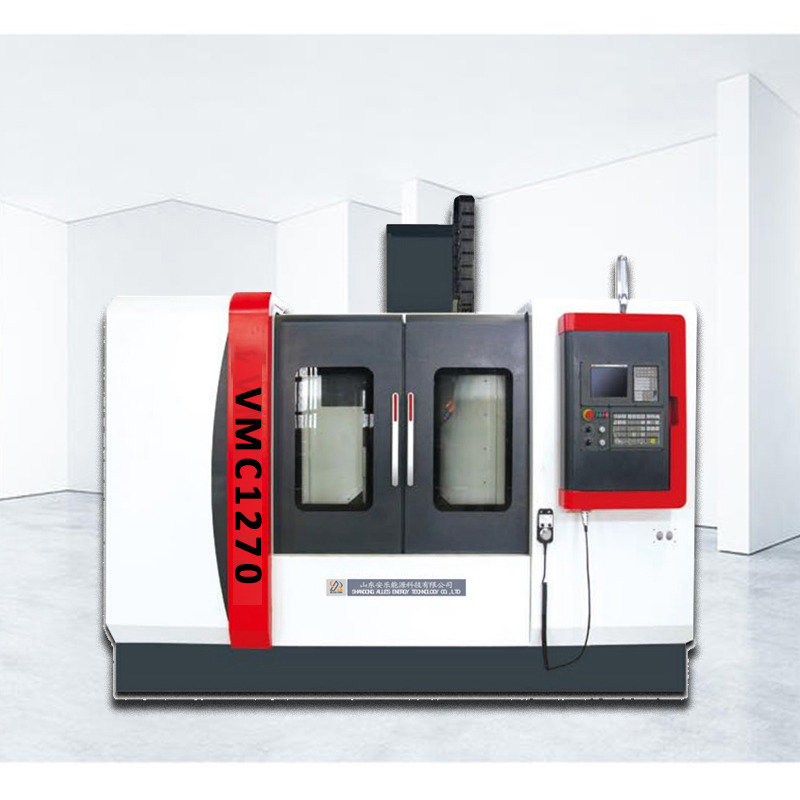

Product name:
CNC Machining Center VMC1270
X/Y/Z Max. feed speed:
10000
Spindle motor:
11
X/Y/Z axis servo motor:
3/3/4.5
The workbench T slot:
5-18*125
Repeat positioning accuracy:
±0.005
Max. tool length:
700
Certificate authentication:
CE, ISO
Machine size (L*W*H):
3400x3100x3000mm
Net. weight (about):
8200
